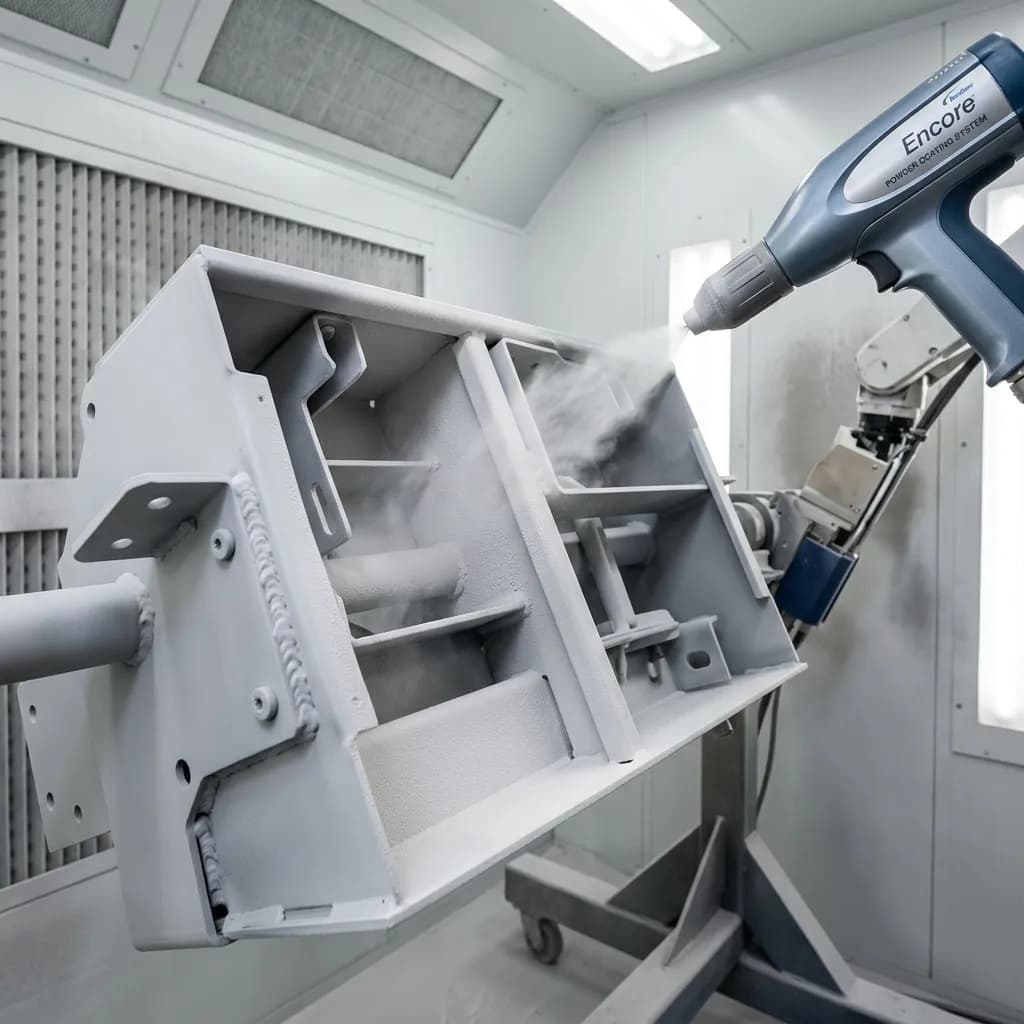

Powder Coating Faraday Cage Effect: Physics, Causes, and Practical Solutions

The Faraday cage effect is one of the most persistent challenges in electrostatic powder coating, causing thin or absent coating in recessed areas, inside corners, channels, and enclosed geometries. The effect is named after Michael Faraday's 1836 demonstration that electric charges distribute themselves on the exterior surface of a conductor, leaving the interior field-free. In powder coating, the same principle causes charged powder particles to preferentially deposit on the outer surfaces and edges of grounded metal parts, while interior and recessed areas receive little or no powder.

The mechanism involves the interaction between the electrostatic field created by the charged powder cloud and the grounded workpiece. When a corona-charged powder gun directs charged particles toward a grounded part, the electric field lines concentrate on the nearest grounded surfaces — typically the outer edges and faces of the part. Inside corners, channels, and recessed areas are electrostatically shielded because the field lines cannot easily penetrate into these geometries. The charged particles follow the field lines and deposit preferentially on the high-field-strength areas, leaving the shielded areas with insufficient coating.

The Physics Behind the Faraday Cage Effect

The severity of the Faraday cage effect depends on several factors: the depth-to-width ratio of the recess (deeper, narrower recesses are more severely affected), the charge level on the powder particles (higher charge increases the effect), the voltage and current settings on the spray gun, and the geometry of the part relative to the gun position. Understanding these variables is essential for developing effective countermeasures, because the optimal solution depends on which factor is dominant for a given application.

Problem Geometries: Where Faraday Cage Effects Are Worst

Certain part geometries are inherently difficult to coat electrostatically due to the Faraday cage effect. Inside corners where two surfaces meet at 90° or less are the most common problem area — the electric field is weakest at the vertex of the corner, and charged particles are repelled by the charge already deposited on the adjacent flat surfaces. The result is a thin line of under-coated or bare metal running along the inside corner, often called a 'holiday' or 'skip.'

U-channels and C-channels present a more severe version of the same problem. The interior surfaces of a channel are shielded by the flanges on either side, and the depth-to-width ratio determines the severity. A channel with a depth-to-width ratio below 1:1 can usually be coated adequately with optimized gun settings, but ratios above 2:1 become extremely difficult. Box sections and enclosed tubes are the most extreme case — the interior surfaces are almost completely shielded from the electrostatic field, and achieving any coating inside a closed box section without internal gun access is essentially impossible with conventional electrostatic methods.

Recessed fastener holes, counterbores, and threaded bosses create localized Faraday cage effects that result in thin coating at the bottom of the recess. Louvered panels, perforated screens, and wire mesh products have complex geometries with numerous inside corners and recessed areas that compound the effect. Assemblies with overlapping components — such as welded brackets on a frame — create shadowed areas behind the bracket that receive minimal powder. Part designers who understand the Faraday cage effect can minimize these problems by specifying larger radii on inside corners (minimum 3 mm radius), avoiding deep narrow recesses, and providing access for spray guns to reach interior surfaces.

Corona Charging: Advantages and Faraday Cage Limitations

Corona charging is the dominant electrostatic charging method in the powder coating industry, used in approximately 85-90% of all electrostatic spray applications. A corona gun uses a high-voltage electrode (typically a sharp needle or ring at the gun tip) to ionize the air surrounding the electrode, creating a corona discharge. Powder particles passing through this ionized zone acquire a negative charge (in the most common negative corona configuration) and are propelled toward the grounded workpiece by the electrostatic field.

Corona guns offer several advantages: high charging efficiency, fast deposition rates, good transfer efficiency on flat and convex surfaces, and the ability to adjust charge level by varying the voltage (typically 30-100 kV) and current (typically 10-80 μA). However, corona charging produces the strongest Faraday cage effects of any charging method because it generates high charge levels on the powder particles and creates strong, directional electric field lines between the gun and the part.

The free ions generated by the corona discharge compound the problem. In addition to charging the powder particles, the corona electrode produces a stream of free negative ions that travel to the grounded part and deposit on the coating surface. These free ions increase the surface charge on the deposited powder layer, creating a repulsive field that opposes further deposition — a phenomenon known as back-ionization. In recessed areas where powder deposition is already limited, the free ion current can actually prevent any powder from reaching the surface. Reducing the voltage and current settings on a corona gun reduces both the particle charge level and the free ion current, which can significantly improve penetration into recessed areas at the cost of reduced deposition rate on flat surfaces.

Tribo Charging: The Faraday Cage Advantage

Triboelectric (tribo) charging offers a fundamentally different approach that significantly reduces the Faraday cage effect. Instead of using a high-voltage electrode, tribo guns charge powder particles through friction — the powder flows through a PTFE (Teflon) or nylon tube inside the gun body, and the contact between the powder particles and the tube wall transfers charge through the triboelectric effect. The resulting charge level is typically 1-5 μC/g, compared to 5-20 μC/g for corona charging — significantly lower, which directly reduces the electrostatic shielding that causes the Faraday cage effect.

The key advantage of tribo charging for Faraday cage geometries is the absence of free ions. Because there is no corona discharge, there is no stream of free ions traveling to the part surface. This eliminates back-ionization entirely and allows powder to deposit more uniformly across the part surface, including in recessed areas. The lower charge level means that the electrostatic field lines are weaker and less directional, allowing charged particles to follow air currents and mechanical momentum into recesses rather than being rigidly steered by the electric field.

Tribo charging does have limitations. Not all powder formulations charge well triboelectrically — the charging efficiency depends on the position of the powder's resin system in the triboelectric series relative to the gun's contact material. Polyester and polyester-TGIC powders generally charge well in PTFE-lined tribo guns, while epoxy and hybrid powders may charge poorly or inconsistently. Tribo guns also have lower deposition rates than corona guns on flat surfaces because of the lower charge level, and they require more frequent maintenance because the charging surfaces wear over time and accumulate powder buildup that reduces charging efficiency. Despite these limitations, tribo guns are the preferred choice for parts with significant Faraday cage geometries, and many production lines use a combination of corona guns for flat surfaces and tribo guns for recessed areas.

Gun Settings and Technique Optimization

Optimizing gun settings is the most accessible countermeasure for Faraday cage effects because it requires no equipment changes or part redesign. The primary adjustments involve reducing the electrostatic charge level and modifying the powder delivery pattern to improve penetration into recessed areas.

For corona guns, reducing the voltage from the typical 60-80 kV range to 30-50 kV significantly reduces the Faraday cage effect by lowering both the particle charge and the free ion current. Many modern corona guns offer a 'low-penetration' or 'Faraday' mode that automatically reduces voltage and current for recessed area coating. Current limiting is equally important — reducing the maximum current from 60-80 μA to 10-30 μA limits the free ion flux and reduces back-ionization. Some advanced gun controllers offer pulsed or modulated charging that alternates between high and low charge levels, providing good deposition on flat surfaces during the high-charge phase and improved penetration during the low-charge phase.

Gun-to-part distance and angle also affect penetration. Positioning the gun closer to the recess opening (150-200 mm) and angling it to direct the powder stream into the recess can improve coverage. However, getting too close with a corona gun increases the local electric field strength and can worsen back-ionization. Using a smaller nozzle or deflector that produces a more focused, narrower spray pattern can direct more powder into the recess opening. Increasing the powder flow rate while reducing the air velocity produces a denser, slower-moving powder cloud that has more momentum to carry particles into recessed areas against the electrostatic repulsion.

For manual coating operations, the operator's technique is critical. Experienced coaters learn to spray recessed areas first, before the surrounding flat surfaces have accumulated charge that increases the Faraday cage shielding. They also use short, targeted bursts directed into recesses rather than continuous sweeping passes that deposit most of the powder on the easily accessible flat surfaces.

Advanced Solutions: Dense Phase and Electrostatic-Free Application

Dense phase powder delivery systems represent a significant advancement for Faraday cage applications. Unlike conventional venturi-based systems that use high air volumes (3-6 m³/h) to transport powder from the hopper to the gun, dense phase systems use low air volumes (0.5-2 m³/h) with a positive-pressure pump mechanism. The result is a denser, slower-moving powder cloud with less turbulence and more consistent particle distribution. This denser cloud has greater mechanical momentum that helps carry particles into recessed areas, and the lower air velocity reduces the disruption of powder already deposited in recesses.

Dense phase delivery also provides more consistent powder output over time, which improves coating uniformity across the entire part including recessed areas. Conventional venturi pumps experience output variation as the powder level in the hopper changes and as the venturi throat wears, leading to inconsistent film thickness that is most noticeable in the already-thin recessed areas. Dense phase pumps maintain consistent output regardless of hopper level and have longer service intervals between maintenance.

For the most extreme Faraday cage geometries, electrostatic-free application may be necessary. This involves applying powder without any electrostatic charge, relying instead on the mechanical momentum of the powder particles and the adhesion of powder to a preheated substrate. The part is heated to 80-120°C before entering the spray booth, and uncharged powder is directed at the part surfaces. The powder melts on contact with the hot surface and adheres through thermal tack rather than electrostatic attraction. This technique eliminates the Faraday cage effect entirely because there is no electrostatic field to create shielding. However, it requires precise temperature control, produces thicker films on surfaces that face the gun, and is not suitable for all part geometries or production configurations.

Part Design Considerations for Electrostatic Coating

The most effective long-term solution to Faraday cage problems is designing parts with electrostatic coating in mind. Design for coating (DFC) principles can dramatically reduce or eliminate Faraday cage issues without requiring special equipment or process adjustments. The fundamental principle is to minimize deep recesses, sharp inside corners, and enclosed geometries that create electrostatic shielding.

Inside corner radii should be as large as functionally possible — a minimum of 3 mm radius is recommended, with 5-10 mm preferred for critical coating areas. Sharp 90° inside corners are the worst case for coating penetration; even a small radius significantly improves the electric field distribution and allows powder to reach the corner vertex. For structural channels and U-sections, the depth-to-width ratio should be kept below 1.5:1 where possible, and access holes or slots in the flanges can be added to allow powder and air flow into the channel interior.

Hanging hole location and orientation affect how the part presents to the spray guns and can be optimized to minimize Faraday cage effects. Parts should be oriented so that the most difficult-to-coat surfaces face the spray guns directly, with flat and convex surfaces positioned where they will receive adequate coating even without direct gun exposure. For complex assemblies, consider whether components can be coated separately before assembly, avoiding the Faraday cage geometries created by overlapping parts.

Venting is another important design consideration. Enclosed or semi-enclosed geometries trap air that resists the entry of the powder cloud. Adding vent holes or slots allows air to escape as powder enters, improving penetration. These vents can be small enough to be inconspicuous in the finished product but large enough to significantly improve coating access. Communication between coating engineers and part designers during the product development phase can prevent costly Faraday cage problems that are difficult or impossible to solve after the part design is finalized.

Quality Verification for Faraday Cage Areas

Verifying adequate coating thickness in Faraday cage areas requires targeted inspection because standard random-point film thickness measurements may miss the thinnest areas. A systematic inspection protocol should identify the critical Faraday cage areas on each part geometry and specify measurement points at the locations most likely to have thin coating — inside corners, channel interiors, recess bottoms, and areas behind obstructions.

Film thickness measurement in recessed areas can be challenging due to access limitations. Standard magnetic or eddy current gauges require the probe to be positioned perpendicular to the surface, which may not be possible in tight corners or narrow channels. Miniature probes with small-diameter tips (2-3 mm) are available for measuring in confined spaces. For areas that cannot be reached with a contact probe, destructive cross-section measurement can be used — cutting through the coated part at the critical location and measuring the film thickness under a microscope.

Minimum film thickness specifications for Faraday cage areas should be established during the qualification process. While flat surfaces may be specified at 60-80 μm, inside corners and recessed areas may have a reduced minimum — for example, 40-50 μm — that reflects the practical limitations of electrostatic coating. The specification should be agreed upon with the customer based on the performance requirements of the application. For corrosion-critical applications, the minimum thickness in recessed areas may need to match the flat surface specification, requiring more aggressive countermeasures such as tribo charging, manual touch-up, or electrostatic-free application.

Process capability studies should be performed on Faraday cage areas to establish the statistical distribution of film thickness and confirm that the process can consistently meet the specification. Control charts tracking film thickness at designated Faraday cage measurement points provide ongoing assurance that the process remains in control and that changes in powder, equipment, or operating conditions have not degraded penetration performance.
