Powder Coating Edge Coverage: Why Edges Fail, Faraday Effects, and Formulation Solutions

Edges, corners, and sharp transitions on coated parts represent the most vulnerable points in any powder coating system. Despite achieving excellent film thickness and protection on flat surfaces, the coating at edges is consistently thinner, less uniform, and more prone to premature failure than the coating on adjacent flat areas. This edge vulnerability is a fundamental characteristic of powder coatings — and indeed of all organic coatings — that arises from the physics of film formation and the geometry of the coated part.

The edge coverage problem has two distinct components: reduced film thickness at edges during application, and surface tension-driven film thinning during the cure process. Both mechanisms work together to produce edges with significantly less coating protection than flat surfaces, creating preferential sites for corrosion initiation, UV degradation, and mechanical damage.

Why Edges Are the Achilles Heel of Powder Coatings

During electrostatic powder application, the electric field lines that guide charged powder particles to the grounded substrate are distorted at edges and corners. On flat surfaces, the field lines are relatively uniform, producing even powder deposition. At external edges and corners, the field lines concentrate, creating areas of high field strength that can cause back-ionization (excessive charge buildup that repels incoming powder) and uneven deposition. At internal corners and recesses, the field lines are attenuated, creating Faraday cage effects that reduce powder penetration.

During curing, the molten coating flows under the influence of surface tension, which acts to minimize the total surface area of the liquid film. On flat surfaces, surface tension promotes leveling — smoothing out thickness variations to produce a uniform film. At edges, however, surface tension pulls the molten coating away from the sharp edge toward the adjacent flat surfaces, thinning the film at the edge. This surface tension-driven flow is the primary cause of edge thinning in the cured film and is a fundamental physical phenomenon that cannot be completely eliminated.

The combination of reduced deposition during application and surface tension-driven thinning during cure can reduce the film thickness at edges to 30-50% of the thickness on adjacent flat surfaces. For a coating applied at 80 microns on flat areas, the edge thickness may be only 25-40 microns — potentially below the minimum thickness needed for adequate corrosion protection or weathering resistance.

Faraday Cage Effects at Edges and Recesses

The Faraday cage effect is an electrostatic phenomenon that significantly impacts powder deposition in recessed areas, internal corners, and complex geometries. Named after Michael Faraday's observation that electric fields cannot penetrate a conductive enclosure, the Faraday cage effect in powder coating describes the attenuation of the electrostatic field in areas that are partially shielded by surrounding conductive surfaces.

In practical terms, the Faraday cage effect means that charged powder particles have difficulty reaching internal corners, channels, box sections, and other recessed features on the workpiece. The electric field lines preferentially terminate on the nearest grounded surfaces (the external faces and edges of the part), leaving the recessed areas with weak or absent electrostatic attraction. Powder particles that do enter recessed areas may not have sufficient electrostatic force to adhere to the substrate, resulting in thin or absent coating in these critical areas.

The severity of the Faraday cage effect depends on the geometry of the recess, the depth-to-width ratio, and the electrostatic charging method. Deep, narrow recesses with high depth-to-width ratios experience the strongest Faraday cage effects, while shallow, wide recesses are less affected. Corona charging — which generates a strong external electric field — is more susceptible to Faraday cage effects than tribo charging, which relies on contact charging of the powder particles and does not generate an external field that can be shielded.

Tribo-charging guns are often preferred for complex geometries specifically because they reduce Faraday cage effects. Without the external ion cloud generated by corona guns, tribo-charged powder particles can penetrate into recesses more effectively, driven by aerodynamic forces and the residual electrostatic attraction between the charged particles and the grounded substrate. However, tribo charging has its own limitations — lower charging efficiency for some powder chemistries, sensitivity to humidity, and lower deposition rates on flat surfaces.

For parts with both flat surfaces and recessed features, a combination approach — corona guns for flat surfaces and tribo guns for recesses — can provide the best overall coverage. Some modern application systems use programmable gun settings that automatically adjust voltage, current, and air flow based on the part geometry, optimizing deposition for each zone of the workpiece.

Surface Tension and Edge Pull-Back During Cure

The surface tension-driven thinning of powder coatings at edges during cure is a fundamental physical phenomenon that occurs regardless of the initial powder deposit thickness. Understanding the mechanism helps explain why edge coverage problems persist even when adequate powder is deposited at edges during application.

When the powder coating melts in the curing oven, it becomes a viscous liquid film on the substrate surface. Surface tension acts on this liquid film to minimize its total surface area. On a flat surface, the minimum-energy configuration is a uniform film of constant thickness — surface tension promotes leveling. At an edge, however, the geometry creates a situation where the coating must cover a sharp transition between two surfaces meeting at an angle. The minimum-energy configuration for a liquid film at an edge is a concave meniscus — a thinned region where the film pulls away from the edge toward the adjacent flat surfaces.

The degree of edge thinning depends on several factors. Edge radius is the most important geometric factor — sharper edges experience more severe thinning than rounded edges. A sharp 90° edge (radius less than 0.5 mm) may lose 50-70% of its flat-surface film thickness, while a rounded edge (radius 2-3 mm) may lose only 20-30%. This relationship between edge radius and coating retention is the basis for the design guideline that recommends rounding all edges to a minimum radius of 1-2 mm before powder coating.

The melt viscosity of the coating during cure affects the extent of edge thinning. Lower viscosity coatings flow more readily and experience more edge pull-back, while higher viscosity coatings resist flow and retain more material at edges. This is why textured and high-viscosity powder coatings generally provide better edge coverage than smooth, low-viscosity formulations — the higher viscosity limits the surface tension-driven flow that causes edge thinning.

The gel time of the coating also influences edge coverage. Faster-gelling coatings have less time for surface tension-driven flow before the crosslinking reaction locks the film in place, resulting in less edge thinning. Slower-gelling coatings allow more flow time and more edge thinning. This creates a trade-off between edge coverage (favoring fast gel) and surface smoothness (favoring slow gel) that formulators must balance based on the application requirements.

Formulation Solutions for Improved Edge Coverage

Powder coating formulators have developed several approaches to improve edge coverage, ranging from rheology modification to specialized edge-coverage additives and alternative resin systems.

Increasing melt viscosity is the most direct formulation approach to improving edge coverage. Higher molecular weight resins, higher crosslinker levels, and reduced flow additive levels all increase the melt viscosity of the coating during cure, reducing the surface tension-driven flow that causes edge thinning. However, increasing melt viscosity also reduces flow and leveling on flat surfaces, potentially increasing orange peel texture. The formulator must find the viscosity level that provides acceptable edge coverage without unacceptable surface quality on flat areas.

Edge coverage additives — typically based on micronized waxes, rheology modifiers, or thixotropic agents — modify the flow behavior of the molten coating to reduce edge pull-back while maintaining acceptable leveling on flat surfaces. These additives work by creating a yield stress in the molten coating — a minimum stress threshold that must be exceeded before flow occurs. Surface tension forces at edges may be insufficient to exceed the yield stress, preventing edge thinning, while the higher forces on flat surfaces still drive adequate leveling.

Reactive diluents and co-reactants that increase the cure speed at edges can improve edge coverage by reducing the time available for edge thinning. Because edges heat faster than flat surfaces (due to their lower thermal mass), a formulation with temperature-sensitive cure acceleration will gel faster at edges than on flat surfaces, locking in the coating before significant thinning occurs.

Textured and structured powder coatings inherently provide better edge coverage than smooth formulations because their higher melt viscosity and faster gelation limit surface tension-driven flow. For applications where edge coverage is critical and a smooth finish is not required, specifying a fine texture or satin finish can significantly improve edge protection.

Dual-coat systems — primer plus topcoat — provide the most reliable edge protection because each coat independently covers the edge, and the probability of both coats being simultaneously thin at the same edge location is much lower than for a single coat. The primer provides a base layer of protection at the edge, and the topcoat adds additional coverage. This redundancy is one of the key advantages of multi-coat systems for corrosion-critical applications.

Design Guidelines for Coatable Parts

The most effective approach to edge coverage improvement is to design parts with coating-friendly geometry from the outset. Design modifications that improve edge coverage are typically simple and inexpensive to implement but can dramatically improve coating performance and service life.

Edge radius is the single most important design parameter for coating performance. All external edges should be rounded to a minimum radius of 1-2 mm before coating. For critical applications (corrosive environments, long service life requirements), a minimum radius of 2-3 mm is recommended. The cost of edge rounding during fabrication (deburring, tumbling, or radius tooling) is minimal compared to the cost of premature coating failure and recoating.

Sharp internal corners should be avoided or filled with radius transitions. Internal corners with radii less than 3-5 mm are difficult to coat adequately due to Faraday cage effects and surface tension-driven thinning. Where sharp internal corners are unavoidable, the coating specification should acknowledge the reduced film thickness in these areas and the potential need for supplementary protection (touch-up coating, sealant, or design modifications to reduce corrosion exposure).

Holes, slots, and perforations create edges that are particularly difficult to coat. The edges of holes and slots are sharp, have small radii, and are partially recessed — combining the worst aspects of edge thinning and Faraday cage effects. Where possible, holes and slots should be punched or drilled after coating, or the edges should be deburred and rounded before coating. For parts where holes must be coated, specifying a minimum edge radius and using tribo-charging application can improve coverage.

Weld seams and weld spatter create irregular surface features that are difficult to coat uniformly. Weld seams should be ground smooth and blended into the surrounding surface before coating. Weld spatter should be removed completely, as the irregular geometry of spatter particles creates edges and recesses that resist uniform coating.

Part orientation during coating application affects edge coverage. Positioning parts so that critical edges face the spray guns directly, rather than being shadowed by other part features, improves powder deposition at these edges. For complex parts, multiple gun positions or part rotation during spraying may be necessary to achieve adequate coverage on all edges.

Testing and Verification of Edge Coverage

Verifying adequate edge coverage requires specific testing approaches because standard film thickness measurements on flat surfaces do not capture the reduced thickness at edges.

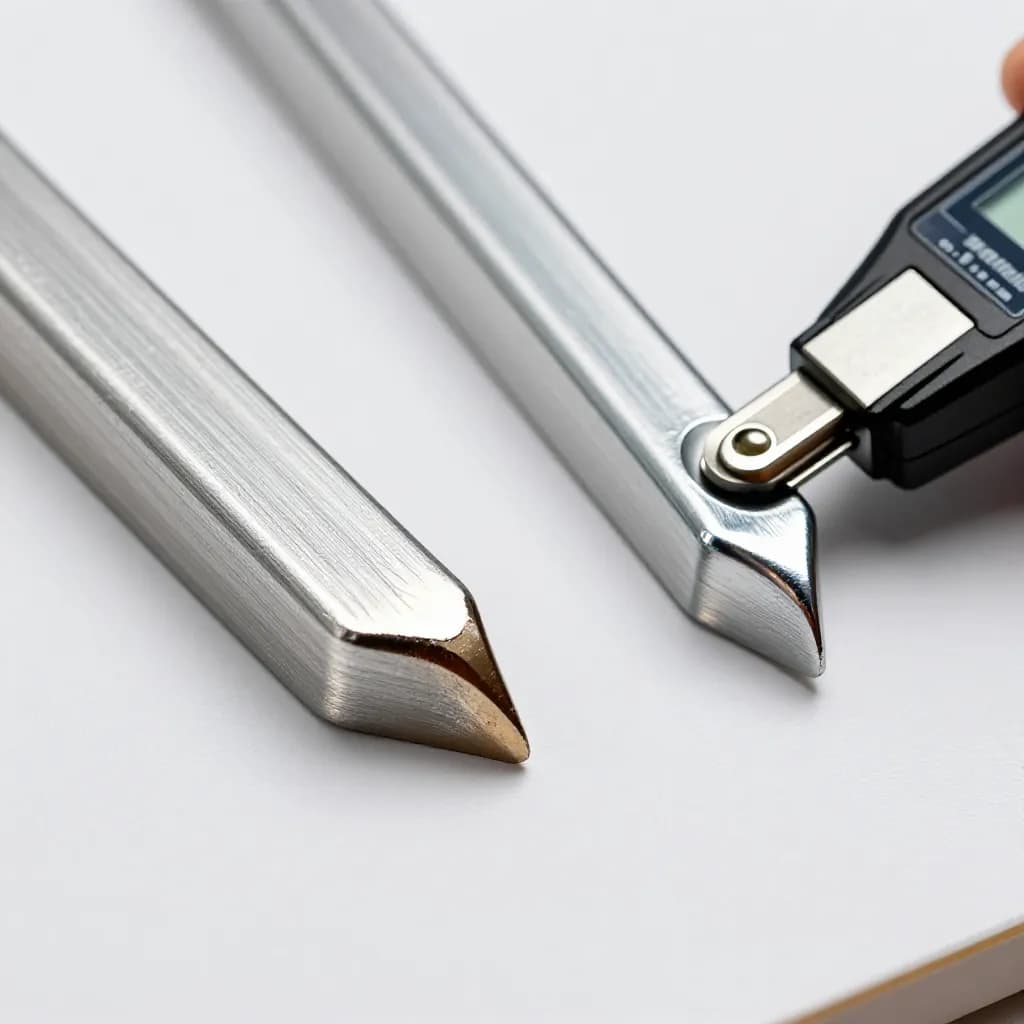

Edge film thickness measurement is challenging because standard magnetic and eddy current thickness gauges are designed for flat surfaces and give unreliable readings on curved or angled surfaces near edges. Specialized techniques for edge thickness measurement include cross-sectional microscopy (cutting through the coated edge and measuring the film thickness under a microscope), micro-sectioning with image analysis, and wedge-cut methods that expose the coating cross-section at a shallow angle for thickness measurement.

The Qualicoat specification addresses edge coverage by requiring that coated test panels include edges and that film thickness measurements be taken at edge locations as well as flat surfaces. The minimum film thickness at edges is not explicitly specified separately from flat surfaces, but the overall minimum thickness requirements (48 microns minimum individual measurement for powder coatings) apply to all measured locations, including edges.

Corrosion testing of edges provides the most direct assessment of edge protection adequacy. Salt spray testing (ASTM B117 or ISO 9227) of panels with defined edge geometries — including sharp edges, rounded edges, and cut edges — reveals the corrosion resistance of the coating at these critical locations. Comparing the corrosion performance of edges with different radii and coating formulations provides practical data for optimizing edge coverage.

Accelerated weathering tests that include edge specimens can reveal UV degradation at edges where the thinner coating provides less UV protection for the substrate and the underlying coating layers. Edge specimens exposed alongside flat-surface specimens in xenon arc or fluorescent UV weathering tests show whether the reduced edge thickness compromises the weathering performance of the coating system.

For production quality control, visual inspection of edges under magnification (10-30x) can detect obvious coating deficiencies — bare spots, extremely thin coverage, or coating discontinuities — that indicate inadequate edge protection. While visual inspection cannot quantify edge film thickness, it provides a rapid screening tool for identifying parts with grossly inadequate edge coverage before they leave the coating facility.

Edge Coverage in Specific Application Sectors

Different application sectors have varying edge coverage requirements and approaches, reflecting the different environmental exposures and performance expectations of each market.

Architectural applications — window frames, curtain wall mullions, and cladding panels — have well-defined edge geometries that are typically designed with adequate radii for coating. Aluminum extrusion profiles used in architectural applications generally have edge radii of 0.5-2 mm as a natural consequence of the extrusion process, providing reasonable edge coverage with standard powder coating formulations. However, cut ends of extrusions, drilled holes, and machined features may have sharp edges that require attention.

Automotive applications present significant edge coverage challenges due to the complex geometries of stamped and formed sheet metal parts. Hem flanges, spot-weld flanges, and cut edges on automotive body panels and closures are particularly vulnerable to corrosion due to thin coating at these features. Automotive OEMs address edge coverage through a combination of design guidelines (minimum edge radii), specialized coating formulations (edge-coverage primers), and supplementary protection (seam sealers, wax injection).

Industrial and agricultural equipment often features heavy steel fabrications with flame-cut edges, weld seams, and sharp corners that are difficult to coat adequately. The aggressive environments in which this equipment operates — outdoor exposure, chemical contact, mechanical impact — make edge coverage particularly critical. Best practice for industrial equipment includes grinding and rounding all edges before coating, using multi-coat systems (zinc-rich primer plus topcoat), and specifying minimum edge radii in fabrication drawings.

Fasteners — bolts, nuts, screws, and washers — present extreme edge coverage challenges due to their complex geometry (threads, hex corners, washer edges) and small size. Thread roots and crests, hex corners, and washer edges all experience significant coating thinning. Fastener coating specifications typically address this by requiring higher nominal film thickness (to ensure adequate minimum thickness at edges) and by using coating formulations specifically optimized for edge coverage on small parts.
