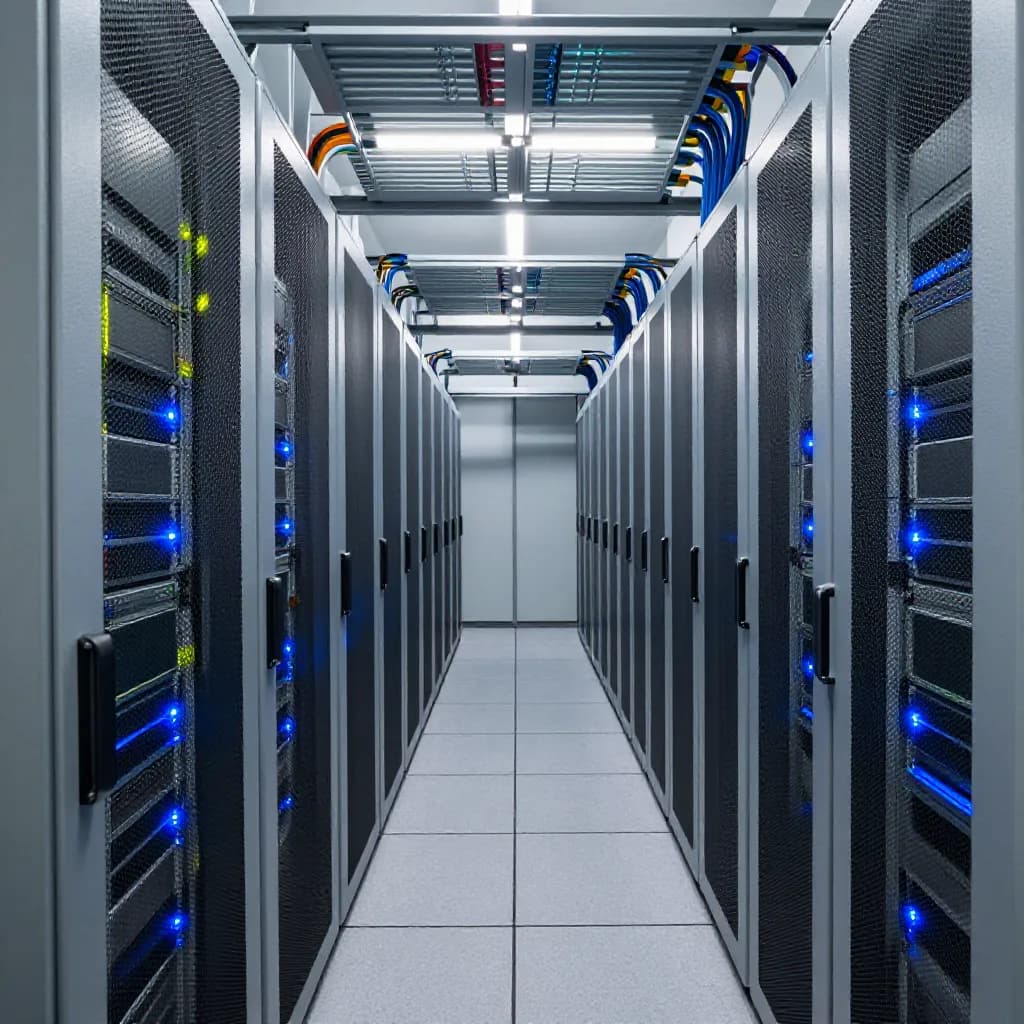

Powder Coating Data Center Infrastructure: Server Racks, Cable Management, and Clean Room Compatible Finishes

Data center infrastructure operates in a controlled environment that imposes unique coating requirements beyond standard industrial finishing. Server racks, cable management systems, raised floor pedestals, cooling infrastructure, and power distribution equipment must be finished with coatings that are compatible with the data center's stringent environmental controls — including particulate cleanliness, outgassing limits, fire safety requirements, and electromagnetic compatibility standards.

The global data center market is expanding rapidly, driven by cloud computing, artificial intelligence, and edge computing deployments. This growth translates directly into demand for powder-coated infrastructure components — a single hyperscale data center may contain 50,000-100,000 server racks, hundreds of kilometers of cable tray, and thousands of raised floor pedestals, all requiring consistent, high-quality powder coating that meets the facility's environmental and safety specifications.

Data Center Coating Requirements: Beyond Standard Industrial Finishing

Powder coating is the preferred finish for data center infrastructure because it provides the combination of durability, cleanliness, and environmental compliance that these facilities require. The zero-VOC, zero-outgassing characteristics of fully cured powder coatings are essential for maintaining the air quality standards of data center white spaces. The consistent film quality and edge coverage of powder coating ensure reliable corrosion protection on the thousands of identical components that populate a data center. And the wide range of available colors and textures supports the visual organization and branding requirements of modern data center design.

Server Racks and Cabinets: The Core Infrastructure Component

Server racks and cabinets are the most visible and highest-volume powder-coated components in data center infrastructure. Standard 19-inch and 23-inch racks are fabricated from cold-rolled steel (CRS) or electro-galvanized steel (EGS) in heights of 42U to 52U (approximately 2.0-2.4 meters), with each rack containing multiple formed and welded components — side panels, top panels, doors, mounting rails, and base frames — all requiring consistent powder coating.

The standard coating specification for server racks is TGIC-free polyester powder at 60-80 microns over iron phosphate or zinc phosphate pretreatment. Black (RAL 9005 or custom data center black) is the dominant color for server racks, accounting for approximately 80% of production volume, with white (RAL 9003) and light grey (RAL 7035) used for specific applications. The finish is typically fine texture or semi-gloss (30-50 GU at 60°) to minimize fingerprint visibility and provide a professional appearance in the data center environment.

Dimensional precision is critical for server rack coating. The 19-inch (482.6 mm) equipment mounting width and the EIA-310 standard rail hole patterns must be maintained within tight tolerances after coating. Powder coating adds 50-80 microns per surface to component dimensions, which must be accounted for in the sheet metal design. Mounting rail holes, cage nut slots, and equipment mounting surfaces are typically masked or designed with coating allowance to ensure that servers, switches, and other equipment install correctly in the coated rack.

Thermal management considerations affect rack coating specification. Server racks must facilitate airflow from front to back (or front to top in chimney configurations) to cool the enclosed equipment. The coating on perforated door panels and ventilation openings must not obstruct airflow by bridging perforation holes. Powder coating's tendency to build up at hole edges (due to electrostatic attraction to sharp edges) can reduce the effective open area of perforated panels. Controlling film thickness on perforated components and specifying minimum perforation sizes that account for coating buildup ensures adequate airflow performance.

EMI Shielding and Electrical Grounding Considerations

Electromagnetic interference (EMI) shielding is a critical function of data center enclosures. Server racks and cabinets must contain the electromagnetic emissions from enclosed equipment to comply with FCC Part 15 (US), CISPR 32 (international), and EN 55032 (European) emission limits, while also protecting enclosed equipment from external electromagnetic disturbances. The powder coating on rack enclosures directly affects EMI shielding performance because it is an electrical insulator that can interrupt the metal-to-metal contact necessary for effective shielding.

Effective EMI shielding requires continuous electrical conductivity across all joints, seams, and access panels of the enclosure. Powder coating on mating surfaces at panel joints creates an insulating barrier that can degrade shielding effectiveness by 20-40 dB if not properly addressed. The standard approach is to mask coating from EMI-critical contact surfaces — door frame contact strips, panel mating flanges, and grounding lug locations — ensuring bare metal-to-metal contact at these points. EMI gaskets (conductive foam, beryllium copper finger stock, or knitted wire mesh) bridge any remaining gaps in the shielding envelope.

Electrical grounding of server racks is both a safety requirement (per NEC Article 250 and IEC 60364) and an EMI performance requirement. The rack's grounding system must provide a low-impedance path from every equipment chassis to the facility ground bus. Powder coating must be excluded from grounding lug mounting surfaces, bonding jumper contact points, and any surface where equipment grounding conductors are attached. These areas are masked during coating and verified for bare metal exposure during quality inspection.

Conductive powder coatings are available as an alternative to selective masking for applications where full-surface EMI shielding is required. These formulations incorporate conductive fillers (carbon black, nickel-coated graphite, or stainless steel fibers) that provide surface resistivity below 10^6 ohms per square while maintaining the corrosion protection and appearance of standard powder coatings. However, conductive powders are significantly more expensive than standard formulations and are typically reserved for specialized EMI enclosures rather than standard server racks.

Cable Management Systems and Pathway Infrastructure

Cable management infrastructure — cable trays, ladder racks, J-hooks, cable runway, and fiber optic pathways — forms an extensive network throughout data center facilities, routing power, data, and fiber optic cables from distribution panels to server racks. The volume of cable management components in a large data center is substantial — a hyperscale facility may contain 50-100 kilometers of cable tray and tens of thousands of individual support components, all requiring powder coating.

The coating specification for data center cable management differs from general industrial cable tray in several important respects. Data center cable trays must meet stricter cleanliness requirements (no loose particles or coating debris that could contaminate the white space), tighter color consistency (visible cable pathways must match throughout the facility), and specific fire safety ratings (plenum-rated cable trays must not contribute to flame spread in the air handling plenum above the raised floor).

Steel cable trays for data center use are typically electro-galvanized and powder coated with polyester at 50-70 microns. The electro-galvanized substrate provides baseline corrosion protection, while the powder coat adds color coding, visual consistency, and additional protection. Color coding of cable pathways — using different powder coat colors for power, data, and fiber optic routes — is a common data center design practice that simplifies cable management and troubleshooting. Yellow (RAL 1021) for fiber optic, blue (RAL 5015) for data, and orange (RAL 2004) for power are typical color assignments, though specific color schemes vary by operator.

Aluminum cable trays are increasingly used in data centers for their lighter weight (reducing structural loading on raised floors and overhead supports) and inherent corrosion resistance. Aluminum cable trays are powder coated over chrome-free conversion coating pretreatment, with the coating serving primarily aesthetic and color-coding functions rather than corrosion protection. The lighter weight of aluminum trays also simplifies installation, reducing labor costs in the cable pathway construction phase of data center build-out.

Raised Floor Systems and Pedestal Finishing

Raised access floors are a defining feature of traditional data center design, creating a plenum space beneath the server floor for cable routing and cold air distribution. The raised floor system consists of steel or aluminum pedestals, steel stringers, and floor panels (typically steel-encased concrete or aluminum), all of which require powder coating for corrosion protection and visual quality.

Raised floor pedestals are the structural foundation of the access floor system, supporting loads of 450-1,350 kg per pedestal depending on the floor's load rating (per CISCA or PSA HPD standards). Pedestals are fabricated from steel tube or plate and powder coated with epoxy or polyester at 50-80 microns. The coating must withstand the compressive loads transmitted through the pedestal without cracking or delaminating, and must resist the moisture that can accumulate in the sub-floor plenum from condensation or cooling system leaks.

Epoxy powder coatings are preferred for raised floor pedestals in the sub-floor environment because they provide superior moisture resistance and adhesion compared to polyester in the humid, low-UV conditions of the plenum space. Since pedestals are not exposed to UV radiation, epoxy's poor UV resistance is not a limitation. The coating must also be compatible with the adhesive used to bond pedestals to the concrete sub-floor — typically two-component epoxy adhesive — without compromising bond strength.

Floor panel finishing requires a different coating approach. The top surface of floor panels must provide a smooth, level surface for equipment installation and personnel traffic, while the bottom surface must resist corrosion in the plenum environment. Many floor panel manufacturers use a dual-coating approach: powder-coated bottom surface for corrosion protection, and a separate top surface treatment (HPL laminate, anti-static vinyl, or bare steel with anti-static coating) appropriate for the specific data center environment. Anti-static properties are essential for floor panel top surfaces to prevent electrostatic discharge (ESD) that could damage sensitive electronic equipment.

Fire Safety and Smoke Generation Requirements

Fire safety is a paramount concern in data center design, and the coating on infrastructure components must comply with stringent fire performance requirements. Data centers contain high concentrations of electrical equipment, cabling, and combustible materials in enclosed spaces, making fire prevention, detection, and containment critical design considerations. The powder coating on racks, cable trays, and other infrastructure must not contribute to fire spread or generate toxic smoke that could endanger personnel or damage equipment.

UL 2416 (Standard for Flammability of Data Processing and Telecommunications Equipment) and NFPA 75 (Standard for the Fire Protection of Information Technology Equipment) are the primary fire safety standards for data center equipment in North America. These standards require that enclosure materials and finishes meet specific flame spread and smoke generation limits. Standard polyester and epoxy powder coatings at typical film thicknesses (50-80 microns) on steel substrates generally comply with these requirements because the thin organic film on a non-combustible steel substrate contributes negligible fuel load.

Plenum-rated cable trays and supports installed in the air handling space above raised floors must comply with NFPA 90A and UL 2043 (Fire Test for Heat and Visible Smoke Release for Discrete Products and Their Accessories Installed in Air-Handling Spaces). These standards impose strict limits on heat release rate and smoke obscuration to prevent the air handling plenum from becoming a pathway for fire and smoke spread. Powder-coated steel cable trays typically pass these tests due to the non-combustible steel substrate, but the coating formulation should be verified for compliance, particularly for thicker film builds or specialty formulations.

European data center fire safety requirements reference EN 13501-1 for reaction to fire classification. Powder-coated steel components typically achieve Euroclass A2-s1,d0 (limited combustibility, negligible smoke, no flaming droplets), which satisfies the most demanding European fire safety requirements for data center infrastructure. This classification is achieved without special fire-retardant coating formulations — the inherent non-combustibility of the steel substrate combined with the thin powder coating film provides the required fire performance.

Clean Room Compatibility and Outgassing Control

Data center white spaces operate under controlled environmental conditions that include particulate cleanliness levels comparable to ISO 14644-1 Class 8 (equivalent to former Class 100,000). While this is far less stringent than semiconductor fabrication clean rooms, it still requires that all materials in the white space — including powder coatings — do not generate particles, fibers, or volatile compounds that could contaminate the controlled environment or damage sensitive electronic equipment.

Outgassing — the release of volatile compounds from cured coatings — is a concern for data center coatings because these compounds can condense on electronic components, contaminate optical fiber connections, or trigger corrosion on sensitive copper and silver contact surfaces. Fully cured powder coatings have extremely low outgassing rates because the thermoset cross-linking reaction consumes virtually all volatile components during the cure process. However, under-cured powder coatings can release unreacted cross-linker, flow additives, and other volatile components that compromise air quality.

Ensuring complete cure is therefore critical for data center powder coatings. Differential scanning calorimetry (DSC) testing per ASTM E2160 can verify cure completeness by measuring the residual exothermic reaction energy in the cured coating — a fully cured coating shows no residual exotherm. Production quality control should include periodic DSC testing of cured panels to verify that oven temperature profiles are achieving complete cure across all component geometries, including heavy steel components that may require longer heat-up times to reach cure temperature.

Particulate generation from powder-coated surfaces is another clean room compatibility concern. Freshly coated components may have loose powder particles on surfaces that were shielded from the electrostatic field during application. A post-cure cleaning step — compressed air blow-off or wipe-down with lint-free cloths — removes loose particles before components are packaged for delivery to the data center. Packaging materials must also be clean room compatible, using anti-static polyethylene bags or foam rather than corrugated cardboard that generates particulate contamination.

Color Standards and Visual Organization in Data Centers

Color plays a functional role in data center operations beyond aesthetics. Systematic color coding of infrastructure components — racks, cable pathways, power distribution, and cooling systems — creates a visual organization system that simplifies operations, maintenance, and troubleshooting in facilities containing thousands of identical-looking components.

TIA-606 (Administration Standard for Telecommunications Infrastructure) provides guidelines for color coding of telecommunications infrastructure, including cable pathway identification. While TIA-606 does not mandate specific colors for data center components, it establishes the principle of systematic color identification that most data center operators implement through their own color standards. Hyperscale operators (AWS, Google, Microsoft, Meta) maintain proprietary color specifications for their data center infrastructure, with custom powder coat colors that are unique to each operator.

The trend toward hot/cold aisle containment in data center design has introduced additional color coding requirements. Cold aisle containment panels, hot aisle doors, and blanking panels are often color coded to visually distinguish hot and cold zones — blue for cold aisles and red for hot aisles is a common convention. This color coding helps operations staff quickly identify airflow zones and detect containment breaches that could compromise cooling efficiency.

White and light-colored powder coatings on data center infrastructure improve lighting efficiency by reflecting overhead lighting into the spaces between and behind racks. This improved light distribution enhances visibility for maintenance activities and can reduce the lighting power density required to achieve adequate illumination levels. Some data center operators specify minimum light reflectance values (LRV > 70%) for rack end panels and aisle-facing surfaces to maximize this lighting efficiency benefit.
