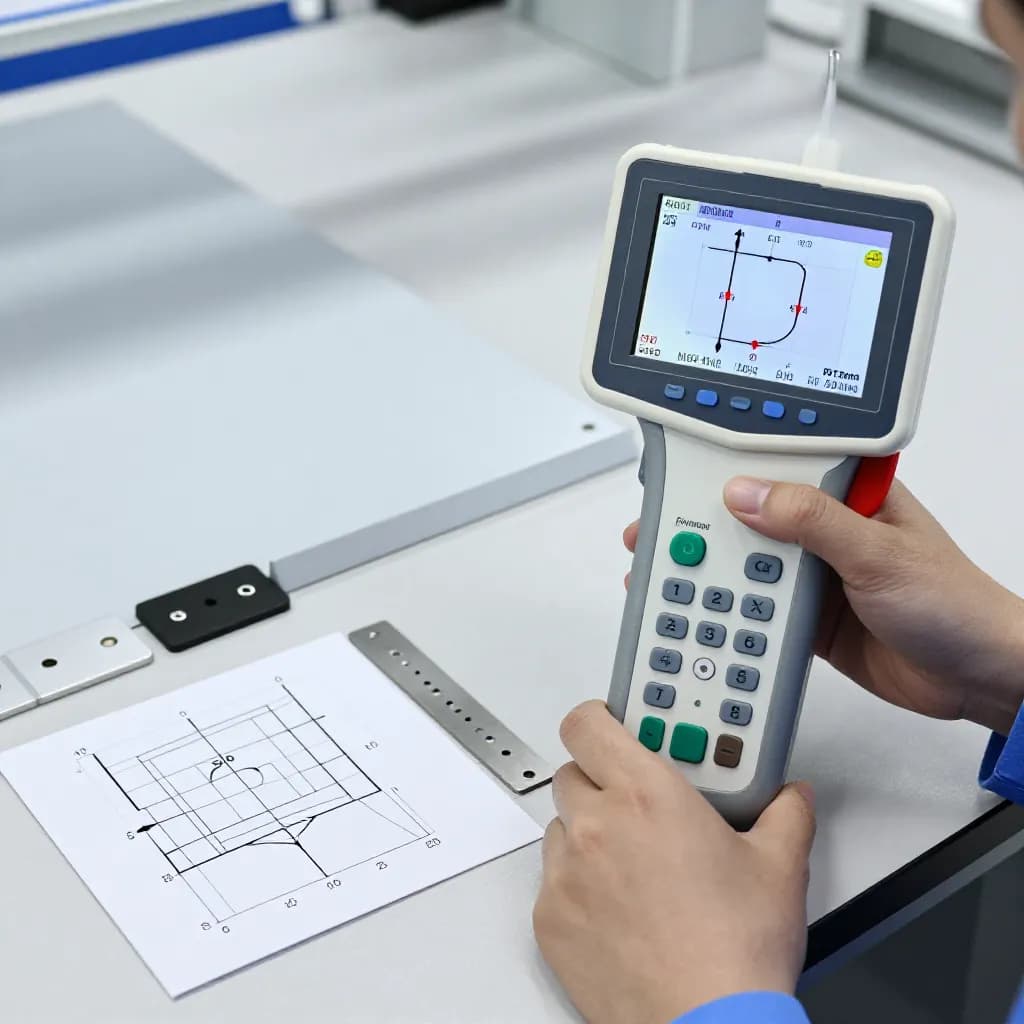

How to Measure Powder Coating Thickness: Gauges, Calibration, and Measurement Patterns

Film thickness is the most frequently measured quality parameter in powder coating operations. It directly affects coating performance — too thin and the coating provides insufficient protection against corrosion, UV degradation, and mechanical damage; too thick and the coating wastes material, may develop defects such as orange peel and runs, and can interfere with dimensional tolerances on precision parts.

Most powder coating specifications define a target film thickness range rather than a single value. A typical specification might call for 60-80 microns (2.4-3.2 mils) for a standard decorative and protective coating, or 80-120 microns for a more demanding industrial application. Every measurement on every part must fall within this range to meet specification. Measurements outside the range indicate process problems that need correction.

Why Film Thickness Measurement Is Essential in Powder Coating

Film thickness measurement serves multiple purposes in a powder coating operation. During production, it provides real-time feedback on application quality, allowing operators to adjust gun settings, travel speed, and technique before defects accumulate across a batch. For quality assurance, it provides documented evidence that the coating meets specification requirements. For process control, trending thickness data over time reveals gradual drift in application parameters that can be corrected before they cause out-of-specification conditions.

This guide covers the measurement technologies, calibration procedures, measurement patterns, and data recording practices that ensure accurate and meaningful film thickness data in powder coating operations.

Magnetic Induction vs Eddy Current: Choosing the Right Gauge

Two non-destructive measurement technologies are used for powder coating thickness measurement: magnetic induction and eddy current. The choice between them depends on the substrate material, and many modern gauges incorporate both technologies in a single instrument that automatically selects the appropriate method.

Magnetic induction gauges measure the thickness of non-magnetic coatings on ferromagnetic substrates — primarily powder coating on steel. The gauge generates a magnetic field that passes through the non-magnetic coating and interacts with the magnetic substrate. The strength of the magnetic interaction decreases with increasing distance (coating thickness) between the gauge probe and the substrate. The gauge measures this interaction and converts it to a thickness reading.

Eddy current gauges measure the thickness of non-conductive coatings on non-ferrous conductive substrates — primarily powder coating on aluminum, copper, brass, and zinc. The gauge generates a high-frequency alternating magnetic field that induces eddy currents in the conductive substrate. The strength of the eddy current signal decreases with increasing distance between the probe and the substrate, providing a thickness measurement.

Dual-mode gauges that incorporate both technologies are the most practical choice for operations that coat both steel and aluminum parts. These gauges automatically detect the substrate type and select the appropriate measurement mode. They eliminate the risk of using the wrong measurement technology, which would produce inaccurate readings.

Measurement accuracy for both technologies is typically ±1-3% of the reading or ±1-2.5 microns, whichever is greater, when properly calibrated. This accuracy is more than sufficient for powder coating quality control, where specification tolerances are typically ±20 microns or wider.

Calibration: The Foundation of Accurate Measurement

A thickness gauge is only as accurate as its calibration. Calibration adjusts the gauge to account for the specific substrate material, surface roughness, and curvature of the parts being measured. Without proper calibration, readings may be consistently high or low by a significant amount, leading to false acceptance of out-of-specification parts or unnecessary rejection of good parts.

Calibration requires two things: a bare substrate sample that matches the production parts in material, thickness, and surface condition, and a set of certified calibration foils (shims) of known thickness that span the expected measurement range. The foils are placed on the bare substrate, and the gauge is adjusted to read the correct foil thickness. This process accounts for the magnetic or electrical properties of the specific substrate and the surface roughness that affects the probe-to-substrate distance.

For the most accurate results, calibrate on a bare area of an actual production part or on a test panel that has been prepared identically to the production parts — same material, same surface preparation, same pretreatment. Calibrating on a smooth, polished calibration block and then measuring on a rough, blasted production surface will introduce systematic error because the surface roughness increases the effective distance between the probe and the substrate.

Calibrate at the beginning of each shift, whenever the substrate material or surface condition changes, and whenever the gauge is dropped or subjected to impact. Most modern gauges store multiple calibration setups, allowing operators to switch between calibrations for different substrates without recalibrating each time. Verify calibration periodically during production by measuring a calibration foil on a bare substrate — if the reading has drifted more than the gauge's specified accuracy, recalibrate before continuing measurements.

Measurement Patterns: Where and How Many Readings

Where you measure on the part and how many measurements you take are just as important as the accuracy of the gauge itself. A single measurement at one point tells you the thickness at that point but says nothing about the rest of the part. A systematic measurement pattern provides confidence that the entire part meets specification.

The standard approach is to define a measurement pattern that covers the critical surfaces of the part with a representative distribution of measurement points. For flat panels, a grid pattern with measurements at the center, each corner, and the midpoint of each edge provides good coverage — typically 9 measurement points for a rectangular panel. For three-dimensional parts, measure on each major surface, in recessed areas, on edges, and at any locations known to be prone to thin or thick spots.

Increase the number of measurement points on parts with complex geometry, parts with tight thickness specifications, or parts for critical applications. Reduce the number on simple parts with wide specification tolerances or for routine production monitoring where the process is well-established and stable.

Take multiple readings at each measurement point — three readings within a 25 mm diameter circle is standard practice — and record the average. This averaging reduces the effect of local surface roughness variations and probe placement variability. If the three readings at a single point vary by more than 10% of the average, the surface may have significant roughness or the gauge may need recalibration.

Avoid measuring on edges, corners, sharp radii, or within 10 mm of part edges. These areas produce unreliable readings because the magnetic or eddy current field is distorted by the proximity of the edge. Thickness on edges and corners should be assessed visually or by destructive cross-section if critical.

Measuring on Different Substrates and Geometries

Different substrates and part geometries present specific measurement challenges that operators must understand to obtain accurate readings.

Thin substrates — sheet metal less than 0.5 mm thick — can affect magnetic induction readings because the substrate does not provide a semi-infinite magnetic mass for the gauge to reference. Most gauge manufacturers specify a minimum substrate thickness for accurate measurement, typically 0.3-0.5 mm for magnetic gauges. Below this thickness, readings may be higher than actual. If thin substrates are common in your operation, verify gauge accuracy on thin samples during calibration.

Curved surfaces affect readings because the probe contact area changes with curvature. Convex surfaces tend to read slightly high because the probe edges lift away from the surface. Concave surfaces tend to read slightly low. For parts with significant curvature, calibrate on a curved surface that matches the production part radius, or apply the correction factors provided by the gauge manufacturer.

Rough surfaces — particularly heavily blasted surfaces with deep profiles — increase the apparent coating thickness because the gauge measures from the probe face to the substrate peaks, while the actual coating thickness includes the material filling the profile valleys. The difference between the gauge reading and the true coating thickness above the peaks can be 10-20 microns on aggressively blasted surfaces. Calibrating on a bare blasted surface of the same roughness compensates for this effect.

Multi-layer coatings — primer plus topcoat, or multiple powder layers — are measured as total system thickness by standard gauges. If individual layer thicknesses are needed, measure the first layer before applying the second, then measure the total after the second layer and calculate the difference. Some advanced gauges can measure individual layers in multi-coat systems using different measurement frequencies, but these are specialized instruments not commonly found in production environments.

Recording and Analyzing Thickness Data

Thickness measurement data is only valuable if it is recorded, organized, and analyzed systematically. Raw numbers scribbled on a notepad provide minimal value compared to structured data that can be trended, analyzed, and used for process improvement.

At minimum, record the part identification, date and time, operator, gauge identification, measurement locations, and individual readings at each location. Many modern thickness gauges have built-in data storage and can transfer readings directly to a computer via USB or Bluetooth, eliminating manual transcription errors and saving time.

Statistical process control (SPC) charts are the most effective tool for monitoring thickness data over time. Plot the average thickness and range (or standard deviation) for each batch or time period on control charts with calculated control limits. The charts reveal trends, shifts, and out-of-control conditions that are not apparent from individual readings. A gradual upward trend in average thickness, for example, might indicate progressive nozzle wear on the powder gun that is increasing the powder flow rate.

Calculate process capability indices (Cp and Cpk) to quantify how well the process is performing relative to the specification limits. A Cpk of 1.33 or higher indicates that the process is capable of consistently producing parts within specification with adequate margin. A Cpk below 1.0 indicates that the process is not capable and will produce out-of-specification parts at an unacceptable rate.

Review thickness data regularly — daily for production monitoring, weekly or monthly for trend analysis. Look for patterns that correlate with specific operators, shifts, powder batches, or equipment conditions. These correlations often reveal root causes of thickness variation that can be addressed through training, maintenance, or process adjustments.

Destructive Thickness Measurement Methods

While non-destructive gauges are the standard for production measurement, destructive methods provide definitive thickness data for calibration verification, dispute resolution, and failure analysis. The two primary destructive methods are cross-sectioning and the Tooke gauge (paint inspection gauge).

Cross-sectioning involves cutting a sample from the coated part, mounting it in epoxy resin, grinding and polishing the cross-section, and measuring the coating thickness under a calibrated microscope. This method provides a direct visual measurement of the actual coating thickness, including the profile of the coating-substrate interface. It is the reference method against which non-destructive gauges are validated and is used when gauge readings are disputed or when the coating system is too complex for non-destructive measurement.

The Tooke gauge is a simpler destructive method that uses a precision cutting tool to scribe a V-groove through the coating at a known angle. The width of the groove at the coating surface, measured through the gauge's built-in microscope, is proportional to the coating thickness. The Tooke gauge is faster and less expensive than full cross-sectioning and can be performed in the field, but it damages the coating at the measurement point.

Destructive methods are not used for routine production measurement because they damage the part. They are reserved for calibration verification — periodically comparing non-destructive gauge readings against destructive measurements on the same sample to confirm gauge accuracy — and for investigating coating failures where the non-destructive gauge readings are suspect.

When performing destructive measurements for calibration verification, take non-destructive readings at the exact location before cutting the sample. Compare the non-destructive reading to the destructive measurement. If the difference exceeds the gauge's specified accuracy, investigate the cause — it may indicate a calibration error, a substrate effect, or a surface condition that is affecting the non-destructive measurement.
