Powder Coating Durability: Superior Corrosion Resistance and Weathering Performance

Sundial Research Team·February 17, 2025·5 min

Powder coatings are not merely an environmentally preferable alternative to liquid paint - they often provide superior performance in the demanding conditions that government assets must endure. With film thicknesses 2-4 times greater than conventional liquid coatings, crosslinked polymer networks that resist chemical attack, and formulations engineered for specific environmental challenges, powder coatings deliver durability that meets or exceeds military, infrastructure, and architectural specifications. For agencies that demand both environmental responsibility and long service life, powder coating offers a rare combination of both.

Powder Coating Durability: Superior Corrosion Resistance and Weathering Performance

Powder coatings typically achieve thicker, more uniform films than liquid coatings:

Ready to Start Your Project?

From one-off customs to 15,000-part production runs — get precise pricing in 24 hours.

Contact Us

Powder Coating Durability: Superior Corrosion Resistance and Weathering Performance

Film Thickness Advantage

Coating TypeTypical Dry Film ThicknessApplication Method
Conventional liquid paint25-50 microns (1-2 mils)Spray, brush, roller
High-build liquid75-125 microns (3-5 mils)Spray
Powder coating50-150 microns (2-6 mils)Electrostatic spray
Thick-film powder250-500+ microns (10-20+ mils)Fluidized bed, electrostatic

The thicker film provides:

  • Greater barrier protection: Longer path for moisture and oxygen to reach substrate
  • Improved chip resistance: More material to absorb impact
  • Better edge coverage: Thicker coating at vulnerable edges and corners
  • Extended service life: Slower degradation over time

Corrosion Resistance

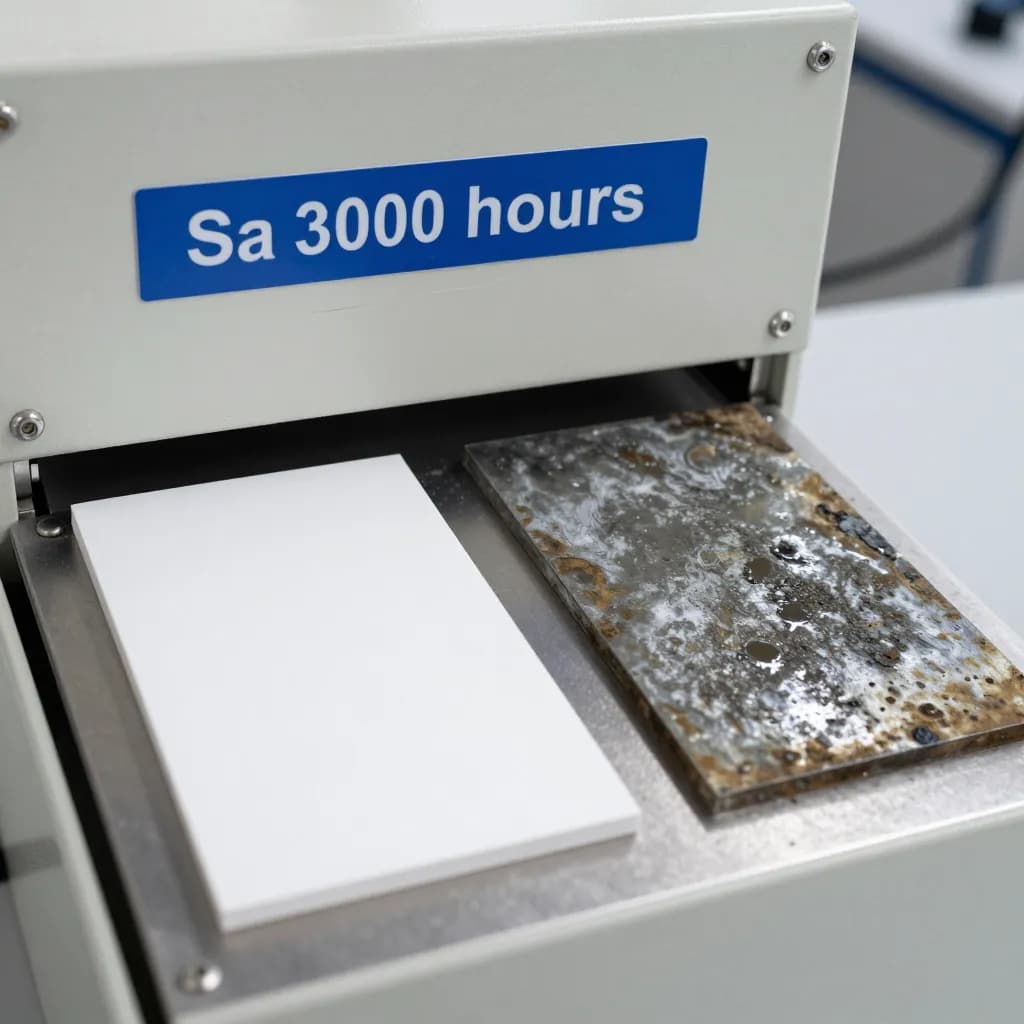

Salt Spray Testing (ASTM B117)

Powder Coating TypeSalt Spray ResistanceApplication
Epoxy-polyester hybrid500-1,000 hoursIndoor, moderate exposure
Pure polyester1,000-2,000 hoursOutdoor architectural
Polyurethane powder1,500-3,000 hoursHigh-performance outdoor
Epoxy powder2,000-5,000+ hoursMarine, chemical exposure
Zinc-rich primer + topcoat3,000-5,000+ hoursHeavy industrial, marine

Performance Mechanisms

  1. Barrier protection: Impermeable film prevents moisture and oxygen reaching metal
  2. Cathodic protection (zinc-rich primers): Sacrificial zinc corrodes preferentially
  3. Crosslinked network: Thermosetting chemistry creates insoluble, chemically resistant film
  4. Adhesion: Strong mechanical and chemical bond to properly prepared substrate

UV and Weathering Resistance

Accelerated Weathering (QUV/ASTM G154)

Powder Coating TypeGloss Retention (2,000 hours)Color Retention
Standard epoxyPoor (not recommended for UV)Poor
Epoxy-polyester hybridFair-GoodFair-Good
Pure polyester (TGIC)Good-ExcellentGood-Excellent
Super-durable polyesterExcellent (>80% gloss)Excellent
Polyurethane powderExcellentExcellent
Fluoropolymer powderOutstanding (>90% gloss at 5 years)Outstanding

Real-World Performance

  • Super-durable polyesters: 10-15 year color and gloss retention in moderate climates
  • Polyurethane powders: 15-20 year performance in demanding environments
  • Fluoropolymer powders: 20-30+ year warranty performance (architectural applications)

Chemical Resistance

Powder coatings demonstrate excellent resistance to:

Chemical ClassEpoxy PowderPolyester PowderPolyurethane Powder
Acids (dilute)ExcellentGoodGood
AlkalisExcellentGoodGood
SolventsExcellentGoodGood-Excellent
Oils and greasesExcellentExcellentExcellent
DetergentsExcellentExcellentExcellent
GasolineGoodGoodGood
Salt waterExcellentGood-ExcellentExcellent

Abrasion and Impact Resistance

Taber Abrasion Testing (ASTM D4060)

Coating TypeCS-17 Wheel, 1,000 cyclesWeight Loss
Liquid alkyd enamel50-100 mgHigher
Liquid epoxy30-60 mgModerate
Powder epoxy20-40 mgLower
Powder polyurethane15-30 mgLower

Impact Resistance (ASTM D2794)

Powder coatings typically withstand greater impact without cracking or delamination than liquid coatings of equivalent chemistry, due to:

  • Thicker film providing more material to absorb energy
  • Crosslinked network distributing stress
  • Better adhesion to substrate

Military and Government Specifications

Powder coatings meet or exceed numerous military and federal specifications:

SpecificationDescriptionPowder Coating Compliance
MIL-PRF-24712Powder coating, thermosettingDirect compliance
MIL-DTL-32348Coating, powder, epoxy/polyesterDirect compliance
TT-E-529Enamel, alkyd (liquid)Powder alternatives available
AAMA 2603/2604/2605Aluminum finishing standardsPowder coating achieves all levels
GS-11Green Seal standardLow-VOC powder qualifies

Lifecycle Cost Analysis

The durability advantage translates to lower lifecycle costs:

20-Year Lifecycle Comparison

Cost ElementLiquid Paint (3 coats)Powder Coating (1 coat)
Initial application$15/m2$20/m2
Maintenance (re-coat at 7, 14 years)$30/m2$0
Surface preparation for maintenance$15/m2$0
Downtime costs$20/m2$0
20-year total$80/m2$20/m2

Example for architectural metal in moderate environment

The Durability-Environment Synergy

Powder coating's durability advantage creates a virtuous cycle:

  1. Longer service life = fewer re-coating cycles
  2. Fewer re-coatings = less material consumption over asset life
  3. Less material = lower environmental impact per service year
  4. Lower maintenance = reduced worker exposure over time
  5. Better protection = longer asset life = reduced replacement

Conclusion

Powder coatings deliver performance that meets or exceeds the most demanding government specifications while eliminating the health and environmental hazards of liquid paint. The thicker, more uniform films; superior corrosion, UV, and chemical resistance; and extended service life make powder coating not merely an acceptable alternative to liquid paint but often a performance upgrade.

For government agencies managing infrastructure, military equipment, vehicles, and facilities that must perform for decades in challenging environments, powder coating provides the durability required while simultaneously protecting worker health and environmental quality. The specification choice is not between performance and safety - it is between a coating system that provides both and one that provides only performance at the cost of worker health.
